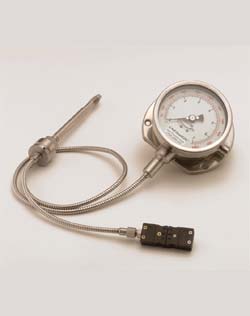

CTG Melt Pressure/Temperature Gauge With Transmitter Outputs - Model CTG

Product Description:

The model CTG Melt Pressure/Temperature Gauge with transmitter outputs and integral thermocouple is designed for processors who would benefit from localized pressure indication at the extruder barrel. These gauges also offer either 4-20mA or 0-10Vdc output, and offers pin-to-pin compatibility with all competitors models utilizing the Bendix style 6 pin bayonet connector.

The CTG style follows the classic melt pressure/temperature transmitter design. It comprises a 6” rigid stem, along with 30” of flexible capillary, integral Type J thermocouple and a 1/2-20 UNF thread for mounting in standard transducer mounting holes.



Features:

  • 4-20mA or 0-10Vdc output, and analogue visual pressure indication.

  • Features all stainless steel construction, with large 4" dial face.

  • Fully compatible with all competitor melt pressure tranmitters.

  • Integral Type J thermocouple


Common Options:

  • 12" rigid stem

  • M18 X 1.5 mounting

  • Flex armour length to 60"

  • Type K thermocouple
