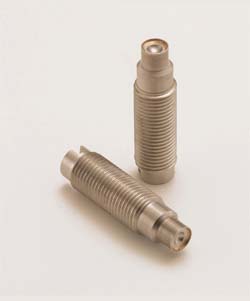

RD2 Extruder Rupture Disk

The model RD2 Extruder Rupture Disk is designed for emergency relief of excess pressure in plastics processing machinery. It is designed to instantaneously rupture at a predetermined pressure.

The model RD2 Extruder Rupture Disk has an overall length of 1.82", slotted screw driver head and a 1/2-20 UNF thread for mounting in standard transducer mounting holes.

Product Details: Click On Link Below

	Specification, Data Sheet & Ordering Guide
	Dimensional Drawing
	Accessories

Features:

Burst pressures from 1,500 to 9,500 psi.
All stainless steel body with Inconel disk.
Standard 1/2-20 UNF mounting thread.

Benefits:

Low installation cost
Maintenance free
Intrinsically safe
