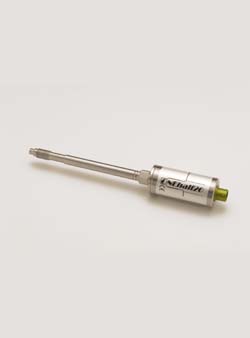

Oil Filled Melt Pressure Transmitter - RTO Series


Product Description:

The RTO Series Oil Filled Melt Pressure Transmitter is designed specifically for food, packaging and medical processing applications. The unit features either 4-20mA or 0-10Vdc output and offers pin-to-pin compatibility with all competitors models utilizing the Bendix style 6 pin bayonet connector.

The RTO Series Oil Filled Melt Pressure Transmitter comes standard with a 6" rigid stem, and a 1/2-20 UNF thread for mounting in standard transducer mounting holes.



Features:

  • Fill material meets FDA, USDA requirements

  • 4-20mA or 0-10Vdc output, with zero and span adjustments, 1% accuracy

  • Internal 80% shunt calibration


Common Options:

  • M18 X 1.5 mounting

  • 12" rigid stem

  • 8 pin connector
